Solenoid Valve

Solenoid Valves-SLGPC

The solenoid valve developed by SLGPC are widely applied as the switching of the automation control or long range control which use fluid as a medium, including air, coal gas, oil, water and steam. The solenoid valve adopt direct drive type,guide type and so on, which can be operated under pressure-free way. It can be used in various industries, such as machinery, textile, environmental protection and petrochemical. It also use plastic coating coil in order to adapt to multiple environmental conditions. The application of seals of the solenoid valve is in order to enhance the cleanness of the working medium, it enable the valve start and stop rapidly and more reliable as well.

SLGPC always focus on the quality control and the product development, which has rich experience in develop non-standard products for meeting customers’specific needs.

Fluid Medium Valves

x
Fluid Medium Valves

SLGPC is specialized in the fluid medium valve over 20 years. The interface sizes of fluid medium valve range from 1MM to 50MM，the working pressure range from 0kg to 50kg，and the medium working temperature range from -20℃ to 180℃, in order to be applicable to different kinds of medium, the choices of sealing material including NBR,EPDM,VITON,PTFE and so on. The main material of valve including forge copper, cast copper, stainless steel and zinc alloy, which can satisfy different applications. SLGPC owns over 10 engineers in the research and development department， which enable us to offer customer with personalized design and manufacture the product with unique machine. Through years of research，SLGPC help customers to resolve the high temperature problem of the solenoid valve coil, which brings the market multiple fluid medium valves which are low in temperature, short in response time and long in service life. In the future, SLGPC will keep researching and developing the energy-saving solenoid valve, which can cover larger power range and speed up the research and development of alternating energy-saving solenoid valve, in order to offer global users with broader use of solenoid valves.

Please click here to browse across our wide selection of SLGPC Fluid Medium Valves.
Steam Solenoid Valve

x
Steam Solenoid Valve

2L series of solenoid valve are mainly used in the two position two way normal close type，for instance，the sizes of interface from 3/8 to 2 inches can choose and install the flange，and choose PTFE as the sealing element，the working temperature can be from -5℃ to 180℃，in addition，to use the guide type structure，the self-sealing compensation extend the product life greatly，the solenoid design enable the product to reach the higher pressure and reach the balance of the piston clearance， increase the efficiency of the product at higher temperature.

Please click here to browse across our wide selection of SLGPC Steam Solenoid Valve.
Air Control Two Way Valves

x
Air Control Two Way Valves

this part of two position two way air control valve only need low pressure to be activated，excellent in sealing performance，alternative approach directions. It has blockage，single and double action control multi structures. It’s better to chose PTFE as sealing component for interface size from1/4’’ to 2’,’which already widely used in food，medical，detergent，petrochemical，coating，vehicle mechanical equipment and so on.

Please click here to browse across our wide selection of SLGPC Air Control Two Way Valves.
High Pressure Solenoid Valves

x
High Pressure Solenoid Valves

High pressure series are mostly high pressure series two position two way solenoid valve, the maximum working pressure is 50 kilograms, it offer three different sizes of thread, which are 1/2"， 3/4" and 1". Those threads are applicable to air, gas, water, hot water, light oil and other different sorts of neutral fluid. In order to satisfy the needs from different industries, SLGPC-404 series solenoid valve can provide customers 10 sorts of voltage, which include wire type and din type: at the same time, to match the low power technique, the high pressure solenoid valve is able to reduce the 80% power consumption without reducing the electromagnetism force, which help customers to resolve the temperature issue, operation life issue, response speed issue and operation safety issue once and for all.

Please click here to browse across our wide selection of SLGPC High Pressure Solenoid Valves.
Pulse Valves

x
Pulse Valves

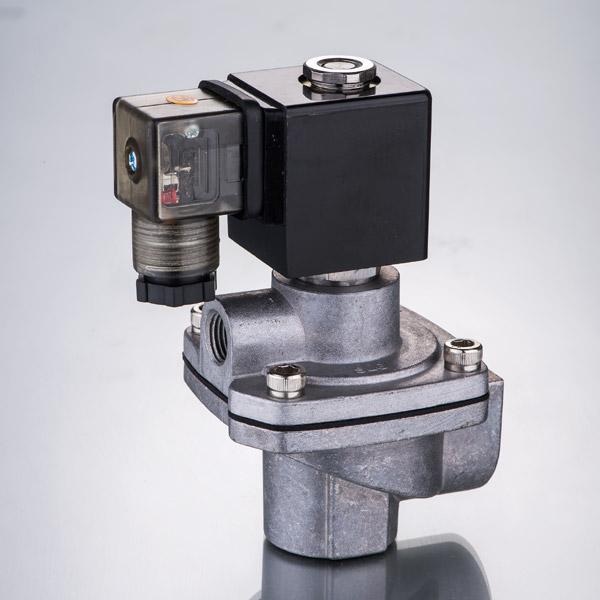

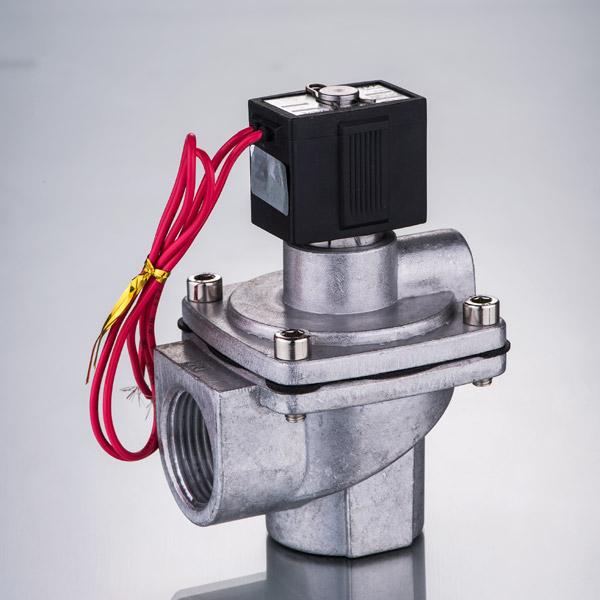

VXF Series Pulse Solenoid valve also name as diaphragm valve, which usually used in pulse bag filter as the switch of the air compression in duct clearing system, under the control of the output signal from the pulse jet control device, it will blow the filter bag row by row in order to clean the dust. Also, it keeps the pressure of the dust collector in the given range, which can guarantee the processing capacity and the dust collecting ability of the dust collector. The construction was designed as a right angle, which apply to the air pocket and the mounting connector of the injection pipe, it helps the dust collector to keep the airflow fluently and supply the requested air pulse for dust cleaning.

Please click here to browse across our wide selection of SLGPC Pulse Valves.
Piston-operated Angle seat valves

x
Piston-operated Angle seat valves

these Piston-operated Angle-seat valve series are full stainless steel, it offers 7 different sizes of threads, which from 3/8" to 2", the cylinder bores of actuator range from 40mm to 100mm, the working pressure is 16 kilograms; also, it has multiple control modes such as single acting normal open and single acting normal closed, double acting normal open and double acting normal closed. To use the PTFE as sealing part，in order to support the temperature of the media that can reach up to 180°C，it applies to water，neutral gas or liquid，alcohol，oil，organic solvent，steam，weak acid or strong alkaline solution.

Please click here to browse across our wide selection of SLGPC Piston-operated Angle seat valves.
PU Series Solenoid valves

x
PU Series Solenoid valves

PU series solenoid valve is able to endure higher working pressure， interface sizes range from 1/8" to 2"，select and use flange according to the actual usage occasion，which is more suitable for air，gas，water，hot water ，light oil and other neutral fluid，based on the practical application situation，it is usually divided into two different states：normally open and normally closed，and also brass body and stainless steel body are optional. PU series solenoid valve offer various kinds of sealing materials such as NBR, VITON, EPDM in order to match different fluids. There are 10 voltages are available for customers to choose. PTFE is generally used as sealing material for PU steam series, this media is able to bear over 180°C.

Please click here to browse across our wide selection of SLGPC PU Series Solenoid valves.
SLG6213 Series Solenoid Valves

x
SLG6213 Series Solenoid Valves

this series of two position two way solenoid valve operate well below 90°C, it applies to: gas, water, oil, weak acid and weak base, coal gas, liquefied gas and other fluid medias. It has several advantages such as low noise; no water hammer, no trembling sound; steady working condition, large capacity; high reliability, long service time. If change the armature sets and coils, the valve can be used as an anti explosion valve.

Please click here to browse across our wide selection of SLGPC SLG6213 Series Solenoid Valves.
